Desalination Units
Reliable Desalination Systems for Marine & Offshore Applications
At Globusmarine, we deliver advanced watermaker solutions built to perform in the world’s toughest marine conditions. Whether for yachts, or commercial vessels, our systems transform seawater into clean, drinkable freshwater — automatically and efficiently.
Designed specifically for marine applications, our watermakers are essential for extended sea voyages. These high-performance systems purify seawater by removing salt and other impurities, delivering safe, drinkable water — and becoming an indispensable resource on every journey across the open sea
Fully Automated Operation
Our watermakers are equipped with an intuitive digital control panel, offering full automation and remote access via RF or wired interface.
Durable Marine-Grade Components
Constructed with AISI 316 stainless steel, all high-pressure parts — including flow meters and valves — are built to withstand corrosion and ensure long-term durability at sea.
Efficient Multi-Stage Filtration
Pre-filtration stages protect the reverse osmosis membranes, enhancing performance, reducing downtime, and lowering maintenance costs.
Energy-Efficient Design
Optimized for low power consumption, our systems are ideal for vessels with limited energy resources or continuous-use applications.
Compact & Modular Builds
Choose from modular or frame-mounted designs that fit perfectly within your available space, ensuring smooth integration onboard or on-site.

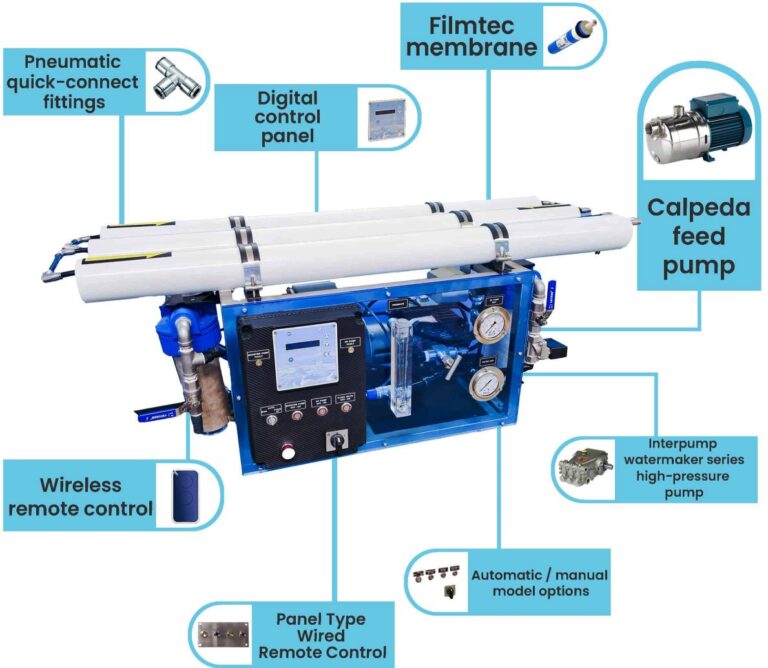

- In automatic packages, wireless RF remote control and wired remote control are mounted on the panel with the feedback signal.
- Digital control panel. (Valid for the automatic package)
- SS316 flowmeter for product water.
- SS316 low and high-pressure gauges.
- Instantaneous flow and conductivity measurement.
- Automatic freshwater flushing system. (Valid for the automatic package)
- Vibration dampers at pump and skid mounts.
- Modular design for easy installation in tight spaces.
- Stainless steel skid.
- Flexible, high-pressure pipes for easy installation.
- Highly durable FRP membrane housing.
- Double-stage pre-filter. (25 and 5-micron filters)
- SS316 high-pressure fittings with quick coupling for easy maintenance and assembly.
- SS316 drain line and flush control valves.
- SS316 high-pressure fittings with quick coupling for easy maintenance and assembly.
- SS316 drain line and flush control valves.
- SS316 low and high-pressure switches.
- Activated carbon filter in the flush line.
- Filmtec RO membranes.
- Interpump high-pressure pump.
- Calpeda feed pump.
| Model | Capacity | Membrane Type | Nominal Power | Feed Pump Power |
|---|---|---|---|---|
| 012540H | 100 l/h | 1 x 2540 | 1.7 KW/h | 0.55 KW/h |
| 022540H | 150 l/h | 2 x 2540 | 2.2 KW/h | 0.55 KW/h |
| 0225240H/M | 150 l/h | 2 x 2540 | 2.2 KW/h | 0.55 KW/h |
| 032540H | 190 l/h | 3 x 2540 | 2.2 KW/h | 0.55 KW/h |
| 042540H | 240 l/h | 4 x 2540 | 2.2 KW/h | 0.55 KW/h |
| 024040H | 350 l/h | 2 x 4040 | 3 KW/h | 0.55 KW/h |
| 02400H/M | 350 l/h | 2 x 4040 | 3 KW/h | 0.55 KW/h |
| 034040H | 450 l/h | 3 x 4040 | 3 KW/h | 0.55 KW/h |
Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| 012540H | 650 | 1145 | 475 | 515 | 315 | 100 | 270 | 80 |
| 022540H | 650 | 1145 | 475 | 515 | 315 | 100 | 270 | 80 |
| 022540H/M | 650 | 1145 | 475 | 515 | 315 | 100 | 270 | 80 |
| 032540H | 650 | 1200 | 475 | 550 | 315 | 100 | 270 | 130 |
| 042540H | 650 | 1145 | 475 | 515 | 315 | 100 | 270 | 80 |
| 024040H | 650 | 1145 | 525 | 515 | 315 | 100 | 270 | 80 |
| 024040H/M | 650 | 1200 | 475 | 550 | 315 | 100 | 270 | 130 |
| 034040H | 650 | 1200 | 580 | 560 | 315 | 100 | 270 | 130 |
Built for a Wide Range of Applications
- Sailing & Motor Yachts
- Commercial Marine Fleets
- Offshore Platforms
- Remote Marine Research Facilities
- Eco-Resorts & Island Infrastructure
Why Globusmarine?
- High reliability in demanding marine environments
- Custom-built solutions to meet your needs
- Expert technical support and spare parts
- Efficient, easy-to-use technology
- Trusted by professionals across the maritime sector
Contact us today to learn more or request a customized solution for your vessel or facility.
